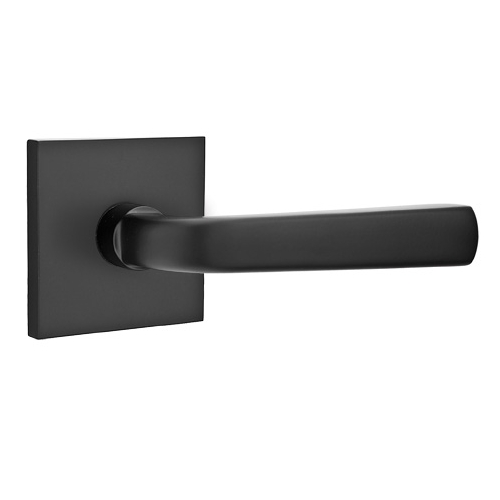

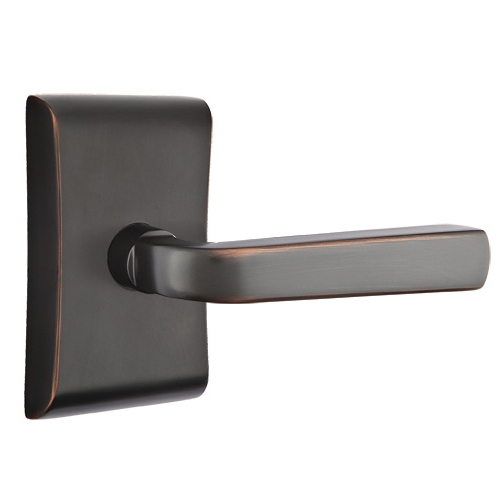

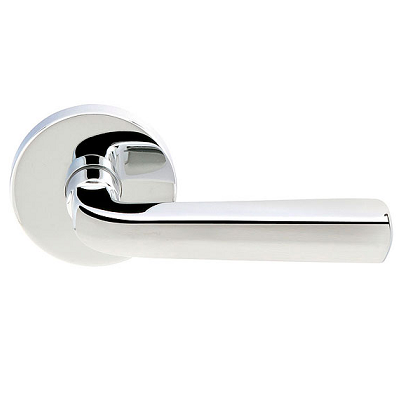

Emtek Sion Door Lever Set

Passage - Non locking. Generally used on hall or closets doors. May be also be used on exterior doors with a deadbolt.

Privacy - Generally used on bedroom/bathroom doors and have a push button to activate lock from interior. Exterior has a pin hole for emergency unlocking.

Single Dummy knobs or levers are sold individually and are non functioning. Perfect for ball catch doors where a latch is not needed or as decorative trim. Surface mounted.

Dummy pairs (full dummy) are sold in pairs. Non functioning and are ideal for ball catch or double doors where a latch is not needed but where the look of a knob or lever is desired. Surface mounted. (If ordering Levers, you will receive 1 left and 1 right hand lever.)

  The backset describes the length of the latch itself. To determine this, start at the center of the borehole drilled in the door and measure to the edge of the door.

CF Mechanism Key Features:

• No Exposed screws on interior side of door
• Easy Installation
• Door thickness up to 2 1/4"
• Supplied with A 28 Degree Latch (for passage and privacy) retracts the latch with less knob or lever travel. Only have to turn the knob or lever slightly, in order to retract the latch.
• Not Available with Drive in Latch

Most interior doors measure 1 3/8” thick, while most exterior doors measure 1 3/4” thick.

• Simply stand outside the room or house facing the door
• If the hinges are on the left, it is a Left-Hand Door lever
• If the hinges are on the right, it is a Right-Hand Door lever
• For single dummy's, stand on the side of the door you are placing the lever on and follow the same steps as above
