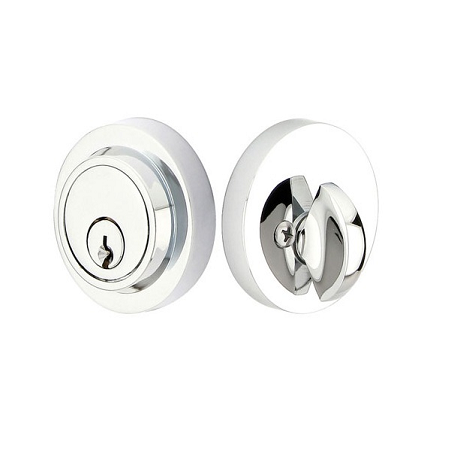

Emtek 8467 Modern Single Cylinder Deadbolt

Shipping Time:

Custom Built - Lead-time currently extended to 10 business days.

Customize Your Emtek 8467 Modern Single Cylinder Deadbolt
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
  • Key on Exterior and thumb-turn on interior
  • Heavy Gauge Steel Understrike and Brass Trim Strike Shipped with every Deadbolt.
  • Hardened Steel Bolt.
  • Solid Brass Cylinder, Housing, Collar and Rosette.
  • 5-pin cylinder (Schlage C Keyway)
  • Standard Door Prep and Installation
  • 2 3/8" or 2 3/4" backset (latch)
  • Accommodates 1 3/8"  to 3" thick doors (please make selection from drop-down menu)

ADA

NO

Backset

2-3/8" or 2-3/4"

Cross Bore

2-1/8"

Cylinder

5 Pin  Keyway (Schlage C Keyway)

Door Thickness

1-3/4" - 3"

Edge Bore

1"

Function

Single Cylinder

Strike Plate

Deadbolt Strike Plate

Panic Proof

No

Product Class

Residential



Emtek Finish Samples
