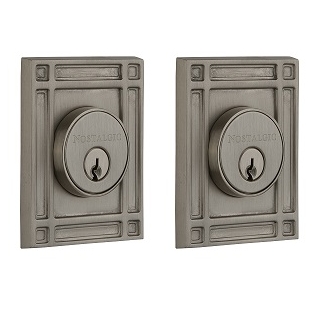

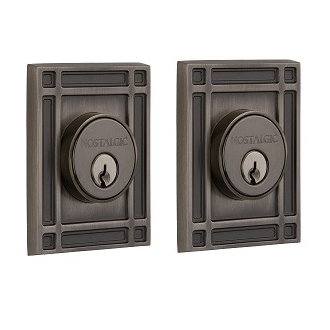

Nostalgic Warehouse MISDBL Mission Double Cylinder Deadbolt
Retail Price:
$185.00
$138.75
You save
25%
SKU: MISDBL
Shipping Time:
Nostalgic products are custom assembled & typically ship with 5 to 7 Business Days
Customize Your
Nostalgic Warehouse MISDBL Mission Double Cylinder Deadbolt
The Mission Deadbolt harkens back to the Spanish Colonial period of the Western frontier, with an instantly recognizable square corner. Made of forged brass and top-quality internal components for smooth, long-lasting operation and comes in six popular finishes.
- Key on Exterior and Key on Interior
- 5-Pin Cylinder (Schlage Keyway)
- Exceeds ANSI A 156.2 Grade 2 lock standards
- 2-3/8” or 2-3/4” backset
- Fits doors prepared with 2-1/8” cross bore
- Adjusts to door thickness from 1-3/4” - 2-1/4”
Height 3 1/8"
Width 2 1/2"
ADA | NO |
ANSI Certification | A156.2 |
Backset | 2-3/8" or 2-3/4" |
BHMA Certification | Grade 2 |
Cross Bore | 2-1/8" only |
Cylinder | 5 Pin Keyway (Schlage C Keyway) |
Door Thickness | 1-3/4" - 2 1/4" |
Edge Bore | 1 |
Function | Double Cylinder |
Latch Faceplate | Square corner |
Panic Proof | No |
Product Class | Residential |
