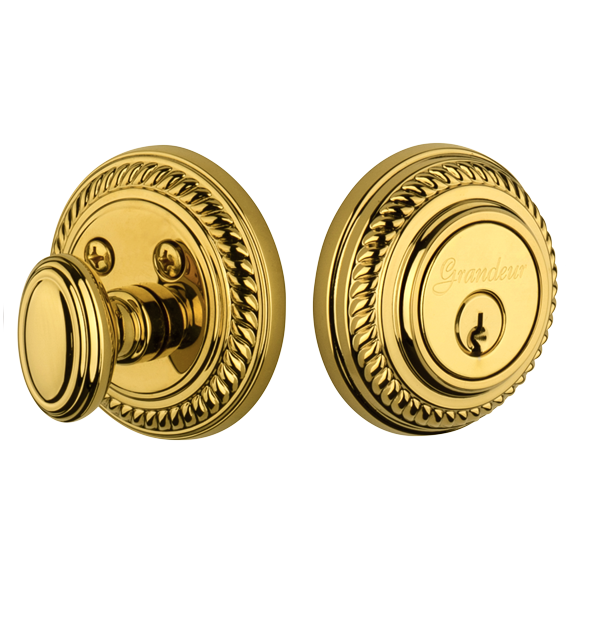

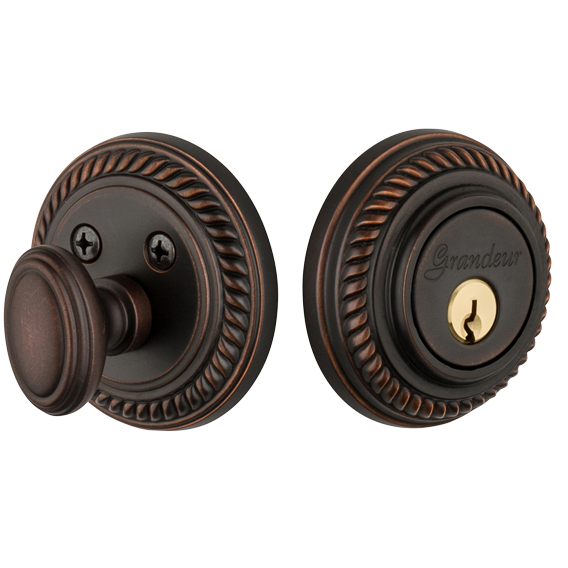

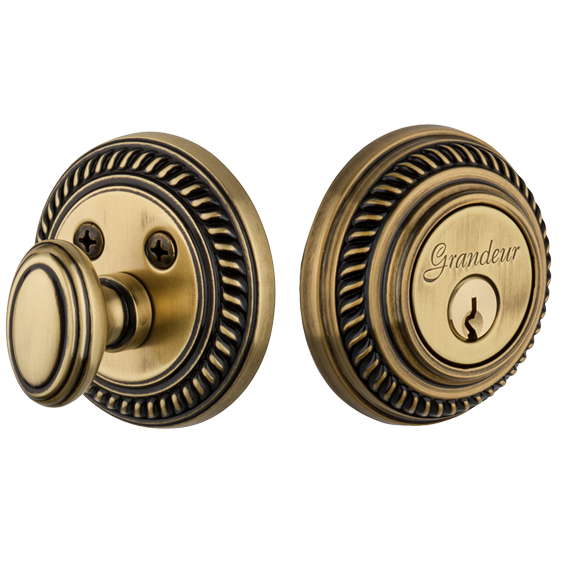

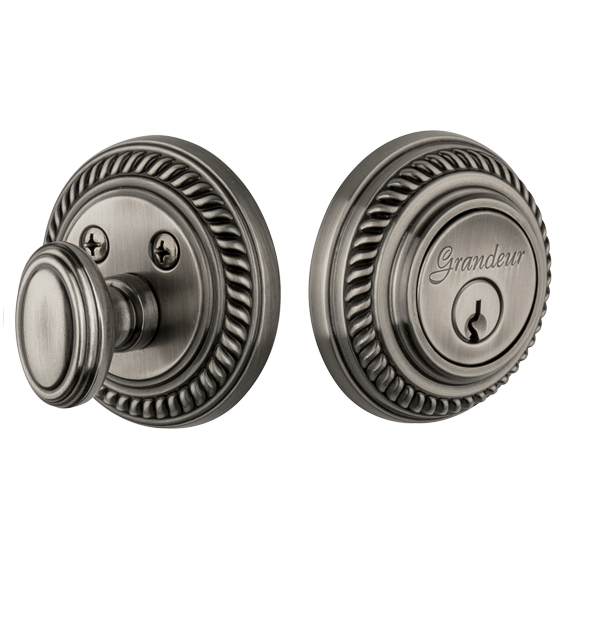

Grandeur Newport Single Cylinder Deadbolt
Retail Price:
$235.00
$176.25
You save 25%
SKU: 823195

Shipping Time:

Grandeur products are custom assembled & typically ship within 5 to 7 Business Days

Customize Your Grandeur Newport Single Cylinder Deadbolt
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying

Grandeur's beauty is complemented by unmatched functionality. Easy and quick installation makes restoration or new construction efficient and exact. Smooth, yet sturdy mechanics, achieved through demanding production tolerances, ensure silk-like operation that is backed by an industry leading lifetime warranty.

  • Key on Exterior and thumb-turn on interior
  • 5-Pin Cylinder (Schlage Keyway)
  • Exceeds ANSI A 156.2 Grade 2 lock standards
  • 2-3/8” or 2-3/4” backset
  • Fits doors prepared with 2-1/8” cross bore
  • Adjusts to door thickness from 1-3/4” - 2”

ADA

NO

ANSI Certification

A156.2

Backset

2-3/8" or 2-3/4"

BHMA Certification

Grade 2

Cross Bore

2-1/8" only

Cylinder

5 Pin  Keyway (Schlage C Keyway)

Door Thickness

1-3/4" - 2"

Edge Bore

1

Function

Single Cylinder

Latch Faceplate

Square corner

Panic Proof

No

Product Class

Residential
