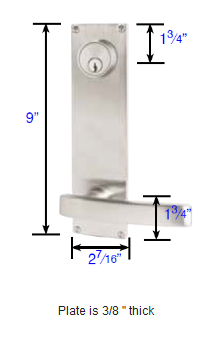

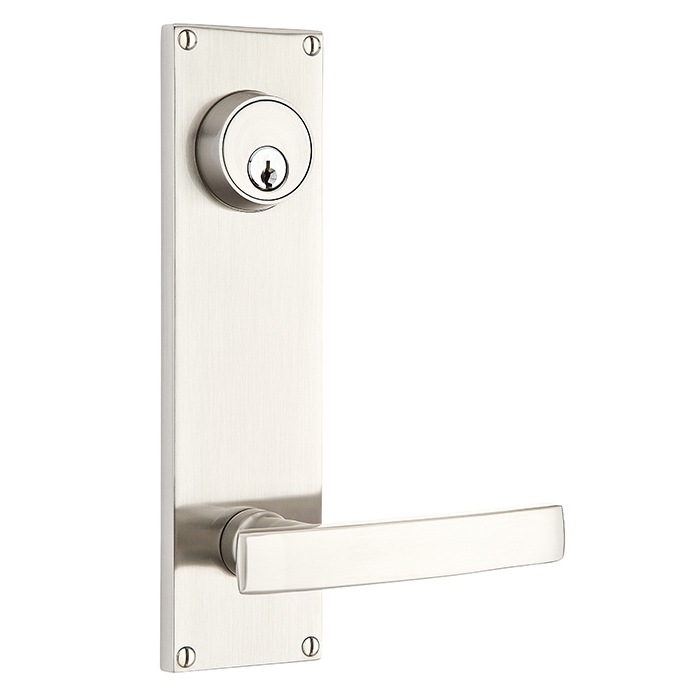

Emtek Modern 9-1/2" Keyed Style Sideplate (5-1/2" C-C Bore)

Shipping Time:

Custom Built - Lead-time currently extended to 10 business days.

Customize Your Emtek Modern 9-1/2" Keyed Style Sideplate (5-1/2" C-C Bore)
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
Please use Scroll Bar to view all Knob or Lever options below
Your knob or lever will match the finish of your handleset

The Emtek 8014, 8114, 8214  Modern Sideplate is available in 4 finishes with a choice of 22 different knobs or levers. Please make your selection from the menus.

  • Requires a 5 1/2" Center to Center bore measurement. This means the distance from the center of the thumb-turn hole to the center of the door knob hole should measure 5 1/2".
  • Available with Single Cylinder (keyed on exterior w/turn on interior) or Double Cylinder (keyed on both sides)
  • Solid Brass Knobs, Levers and Plates.
  • Fits doors from 1-1/4" to 2-3/4" thick (single cylinder) and 1-5/8" to 2-1/2" thick (double cylinder)
  • 2 3/8" or 2 3/4" backset/latch
  • Door handing required when ordering.
  • Complete set. Includes knobs and backplates for both sides of the door, latch and strike plate and mounting hardware.
  • Shipped with square corner mortise plates and strike plate. Rounded corner available upon request.
  • Empowered™ Motorized Smark Lock Upgrade Available - Works with Yale Access. Includes Yale Access Module, WI-FI Bridge and DoorSense
  • The Empowered™ Lock is an unobtrusive smart lock unit which replaces the interior deadbolt trim

Please Note: Handing is required if Interconnect Device is selected with a knob or lever interior. Interconnect not available for double cylinder sideplates or Empowered Upgrade.

Backset

 2-3/8" or 2-3/4"

Collection

American Classic

Cross Bore

2-1/8"

Door Thickness

1-1/4" to 2-3/4"

Edge Bore

1

Function

Single Cylinder, Double Cylinder, Dummy Pair

Handing

Required

Handle Style

Solid Forged Brass



Emtek Finish Samples
