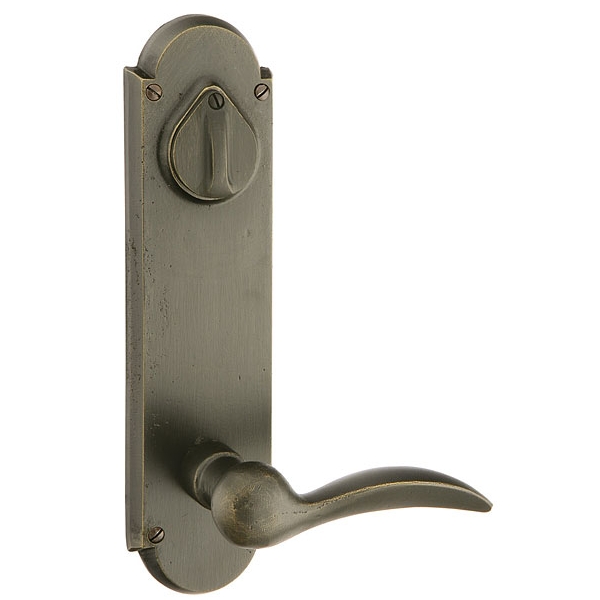

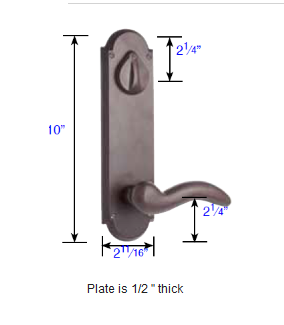

Emtek #5 Style Sandcast Bronze 10" Keyed Sideplate (5-1/2" C-C Bore)

Single Cylinder – locked and unlocked by a key from the outside and a thumb turn on the inside.

Double Cylinder - locked and unlocked by a key from the outside and the inside.

Dummy Pair - Used on double doors on the inactive door.  Gives the look of a complete working set, but is non functioning.

  The backset describes the length of the latch itself. To determine this, start at the center of the borehole drilled in the door and measure to the edge of the door.

The interconnect device provides an emergency egress function on tubular handle sets and keyed sideplates with 5 1/2" CTC bore hole spacing. When the deadbolt is in the locked position, simply turning the knob or lever will open both the deadbolt latch and the passage latch. It is especially handy in a fire or many other panic situations.

Most interior doors measure 1 3/8” thick, while most exterior doors measure 1 3/4” thick.

To determine whether the door is a Right-Hand or Left-Hand Door.

• Simply stand outside the room or house facing the door
• If the hinges are on the left, it is a Left-Hand Door.
• If the hinges are on the right, it is a Right-Hand Door.

Choose "Keyed Alike" to use the same key on mulitple locks or "Keyed Differently" to ensure that multiple locks will require different keys. If you require us to key a lock the same as an existing key, please enter the key code in the custom keying box.

Please contact customer service for assitance with master keying or keying multiple manufacturers the same.
