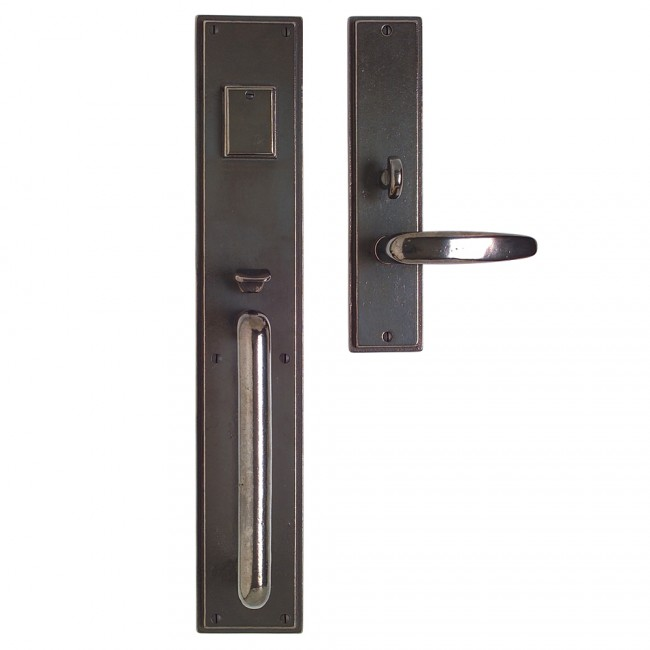

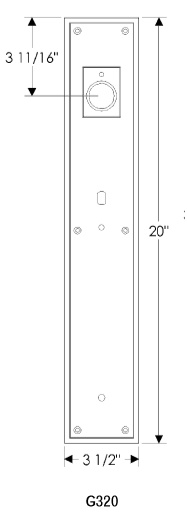

Rocky Mountain G320,G324 Stepped Entry Set 3-1/2" x 20" with Choice of Interior Escutcheon

Important: Please ensure you have the correct door preparation for the function you are selecting.

Spring Latch                  Mortise Lock

Entry Locks - keyed exterior with turn on interior

Patio Function - locked by turn piece from the interior side, but has no keyed excess from exterior (typically used on secondary exterior doors)

Dummy - Non functioning, typically mounted on an the inactive door of french doors or double doors

Measure from the edge of the door to the center of the drilled bore hole, or center of the knob/lever on your existing door.

Choose "Keyed Alike" to use the same key on mulitple locks or "Keyed Differently" to ensure that multiple locks will require different keys. If you require us to key a lock the same as an existing key, please enter the key code in the custom keying box.

Please contact customer service for assitance with master keying or keying multiple manufacturers the same.

To Determine Door Swing:

• Simply stand ouside of the house or room facing the door.
• If the door swings away from you select Swings In.
• If the door swings toward you select Swings Out

Most interior doors measure 1 3/8” thick, while most exterior doors measure 1 3/4” thick.

• Simply stand outside the room or house facing the door
• If the hinges are on the left, it is a Left-Hand Door lever
• If the hinges are on the right, it is a Right-Hand Door lever
• For single dummy's, stand on the side of the door you are placing the lever on and follow the same steps as above
