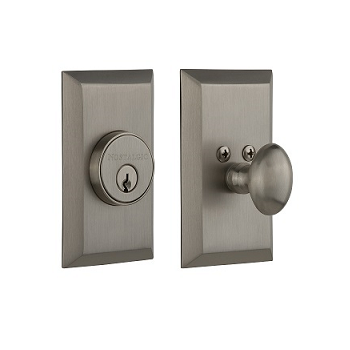

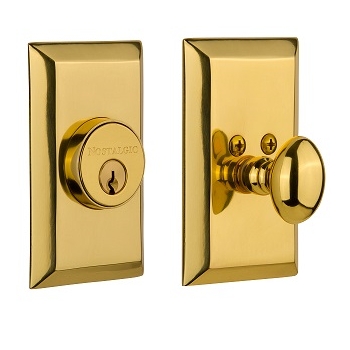

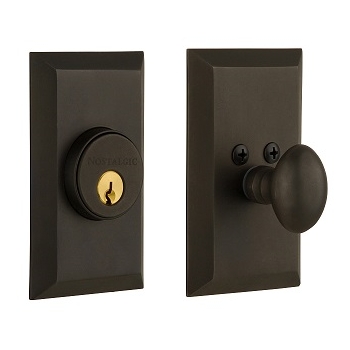

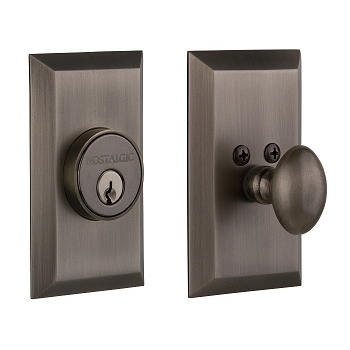

Nostalgic Warehouse STUSGL Studio Single Cylinder Deadbolt
Retail Price:
$185.00
$138.75
You save 25%
SKU: STUSGL

Shipping Time:

Nostalgic products are custom assembled & typically ship with 5 to 7 Business Days

Customize Your Nostalgic Warehouse STUSGL Studio Single Cylinder Deadbolt
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying

The clean lines of the Studio Deadbolt coordinates well with any architectural style.  Made of forged brass and top-quality internal components for smooth, long-lasting operation and comes in five popular finishes.

  • Key on Exterior and thumb-turn on interior
  • 5-Pin Cylinder (Schlage Keyway)
  • Exceeds ANSI A 156.2 Grade 2 lock standards
  • 2-3/8” or 2-3/4” backset
  • Fits doors prepared with 2-1/8” cross bore
  • Adjusts to door thickness from 1-3/4” - 2-1/4”

Height 4"



Width 2.5"

ADA

NO

ANSI Certification

A156.2

Backset

2-3/8" or 2-3/4"

BHMA Certification

Grade 2

Cross Bore

2-1/8" only

Cylinder

5 Pin  Keyway (Schlage C Keyway)

Door Thickness

1-3/4" - 2 1/4"

Edge Bore

1

Function

Single Cylinder

Latch Faceplate

Square corner

Panic Proof

No

Product Class

Residential
